Palletize System Videos

Palletize System
Spec Sheets

Product Catalog

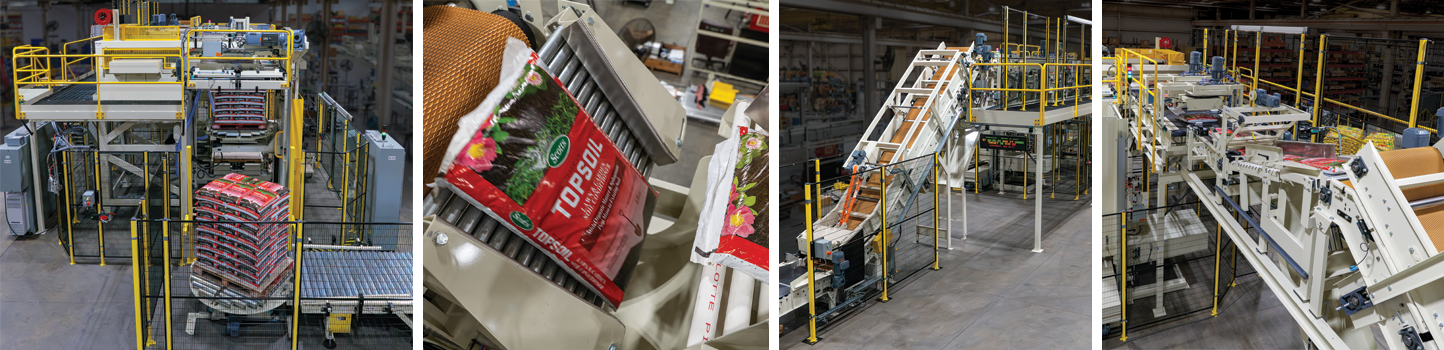

PLS High Entry System

PLS palletizers are modular in design, so that they can be configured to meet the operational needs of your facility. Units can be engineered with a selection of bag positioning devices and pusher arms, to meet throughput requirements of 1,500 to 3,000 bags per hour.

PLS systems can handle any
pallet size and any stacking pattern; that’s why you find them in a wide
variety of industries, handle everything form building materials and pet food, to plastic pellets and ice cubes.

Features of the PLS Split-Plate Palletizing System include:

  • An independent layer compressing plate flattens the surface of each layer, providing maximum load stability.
  • A split sliding plate minimizes friction on each layer.
  • Standard empty pallet magazine (20 empty pallets) and loading conveyor.
  • A full pallet pick-up station simplifies pick-up of completed loads.
  • Pallet elevator with counterweight.
  • A number of additional options are available, such as glue systems, slip sheet dispensers, air tables, check weighers, metal detectors, bag marking systems, reject stations, and empty pallet storage zones for 60 pallets or more.

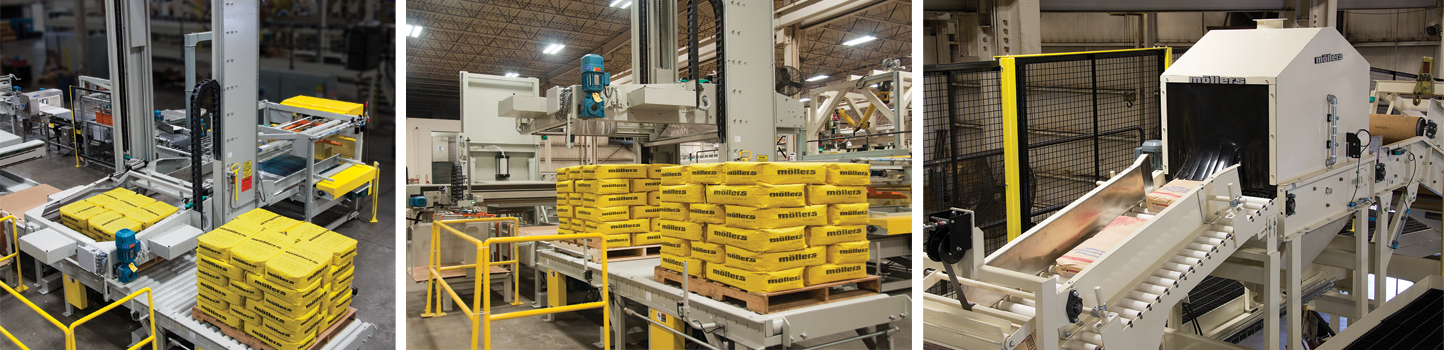

PFS Floor-Level System

The space-saving PFS Floor-Level Modular Palletizing System provides the advantages of automatic palletizing to businesses with lower throughput requirements. And like its counterpart, the PLS system, it can accommodate any stacking pattern that you may require.

Each PFS palletizer is composed of independent modules, enabling it to be configured to fit virtually any space requirements. Because of its modular design, the PFS also enables you to easily add auxiliary devices.


Features of the PFS Floor-Level Modular Palletizing System include:

  • Low infeed height for easy monitoring.
  • Standard empty pallet magazine (20 empty pallets) and loading conveyor.
  • Pop-up turning device withvariable frequency drive.
  • Counterweighted slide plate elevator with high capacity variable frequency drive.
  • Timing belts and timing pulleys everywhere possible.
  • Pre-engineered bag turningdevices, roller or belt tables, and loading stations that can be added to suit your application.

Technical specifications:

  • PLC operation including modem
  • Touch screen operator interface
  • Full diagnostics
  • Capacity, up to 15 bags/minute (900 bags/hour)

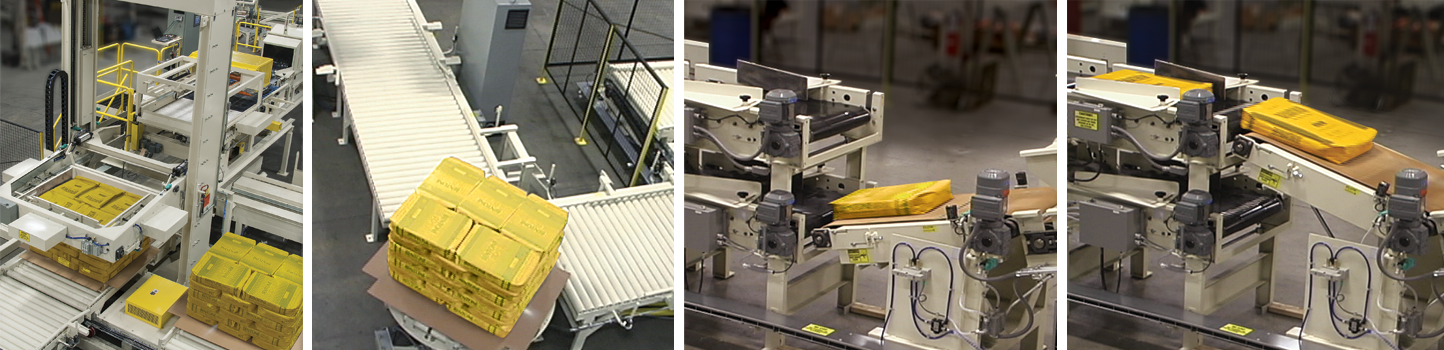

PFS Floor-Level (Dual Line) System

Functional Features

  • Palletizes two product lines with one palletizer simultaneously
  • Provides layer squaring and layer compression to product tightly cubed load stacks
  • Each line accumulates one layer’s worth of product, and pallet stacking is alternated between each product line one layer at a time
  • Capacity is 5 to 6 bags per minute per line (10 to 12 bags per minute combined)

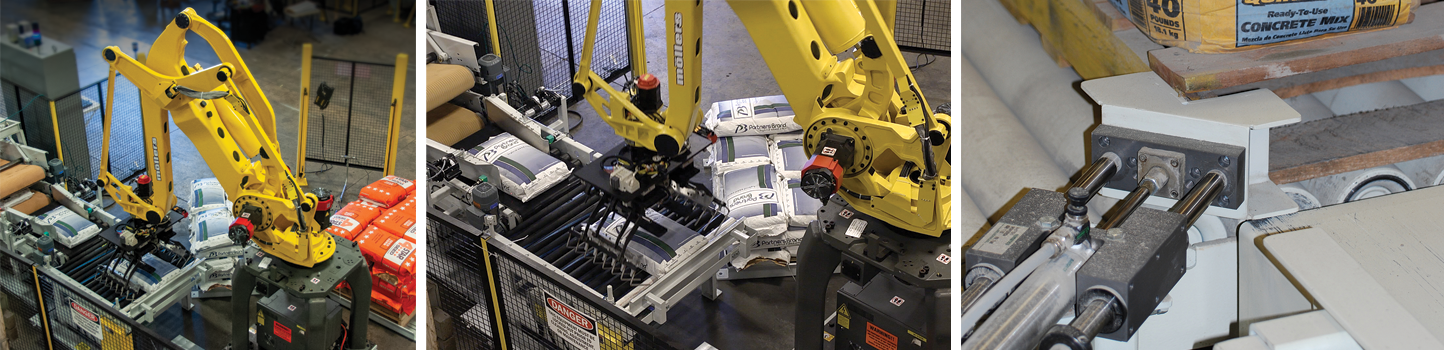

PRS Robotic System - Bags

Mollers North America’s Robotic Palletizing Systems are designed for low-volume bag and carton palletizing applications in a wide range of industries. Robotic palletizers can easily be integrated with our automatic bag-filling equipment, stretch hooding or shrink-wrapping systems to provide an integrated system solution that meets the customer’s needs.

Robotic solutions provide exceptional operational flexibility and can build multiple pallet loads of different products simultaneously; handle a variety of product sizes, shapes and weights; and can be quickly re-programmed to handle new or changed load requirements.

Features of the Robotic Palletizing System include:

  • Fully automatic operation
  • Application specific custom grippers
  • Controller can manage up to four robots and features pre-loaded application software with Touch Screen operator interface
  • State-of-the-art safety equipment complies with both ANSI/RIA R15.06-1999 and Canadian safety standards
  • Graphical User Interface (GUI) expedites troubleshooting, training and changing operational parameters
  • Robotic systems can service multiple in-feed lines and handle a variety of product sizes, shapes and weights simultaneously
  • All electrical and pneumatic lines are run inside the robotic arms for maximum protection
  • Robotic systems can be configured to meet most floor plan limitations

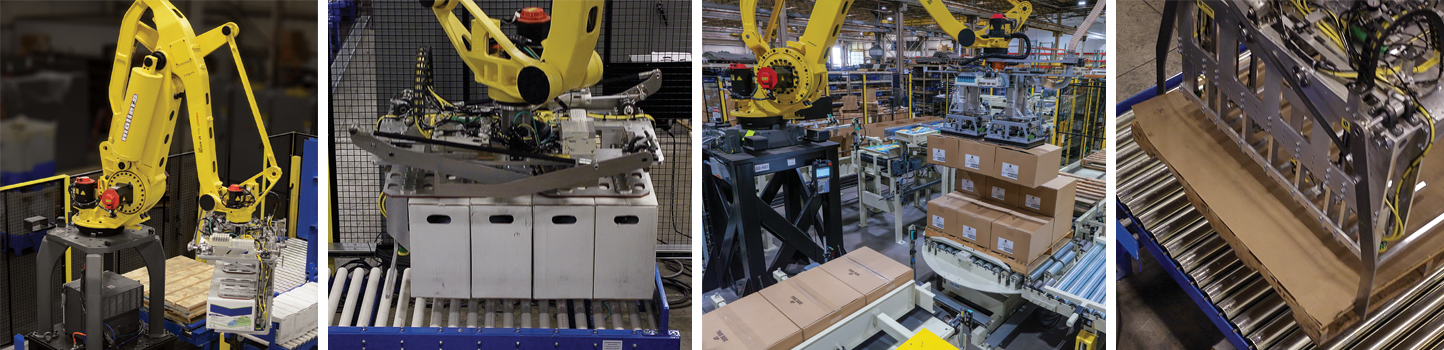

PRS Robotic System - Cases

Technical Specifications:

Product Dimensions

Width: 9” to 24” (230 to 585 mm)
Length: 12” to 48” (330 to 990 mm)
Thickness: 1.5” to 24” (40 to 150 mm)
Weight: up to 176lb (80kg)

Pallet Load Dimensions
Length and width: up to 60”X 72” (1525 X 1830 mm)
Height: up to 104” (2640 mm)

Throughput
 Up to 20 placements per minute, depending upon product and pallet size

Pneumatic
 Operating pressure: 90 psi
Air consumption up to 6 scfm (170 Nl/min)

Electrical
 460V / 3Ph / 60Hz

Payload Capacity
Up to 176 lbs. (80kg)
